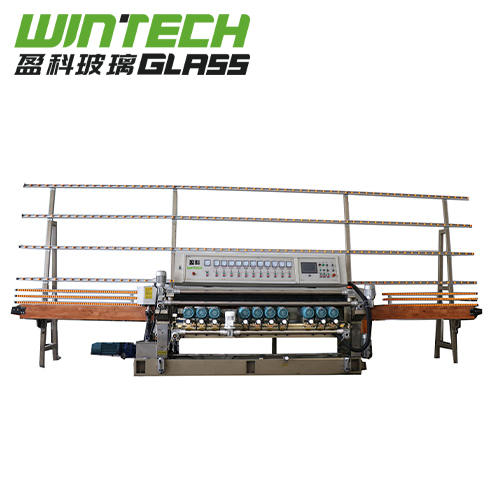

WTX-371SJ Glass straight line beveling machine

Item No.: WTX-371SJ
This glass straight line beveling machine is used for flat glass straight line bevel edge  polishing of different sizes and thickness. this machine can provide profect processing for mirrors and any kind of glass require bevel edge.
Download an e-book
Description Brand Introduction
Machine Description:
This glass straight line beveling machine is used for flat glass straight line bevel edge grinding and polishing of different sizes and thickness. The front and rear chain plates both adopt the reinforced sheet steel with strong rigidity, which provide stable conveyance and high process precision, Feeding speed can be sleeplessly adjusted, and operation speed can be altered as required.
The base is one-piece casting, this can make the machine very steady especially for big and thick glass.

Parameter:
Voltage 380V/50HZ/3Phase
Power 24.5KW
Bevel angle 0-45℃
Max bevel width 45MM
Thickness of processed glass 3-19MM
Feeding speed 0.5-4M/MIN
Min size of glass 25*25MM
Wight of machine 5000KG
Size(L*W*H) 6800*1300*2500MM

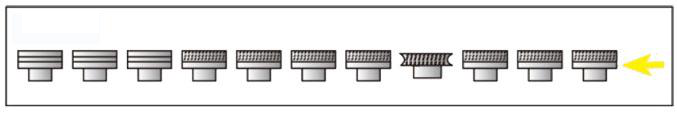

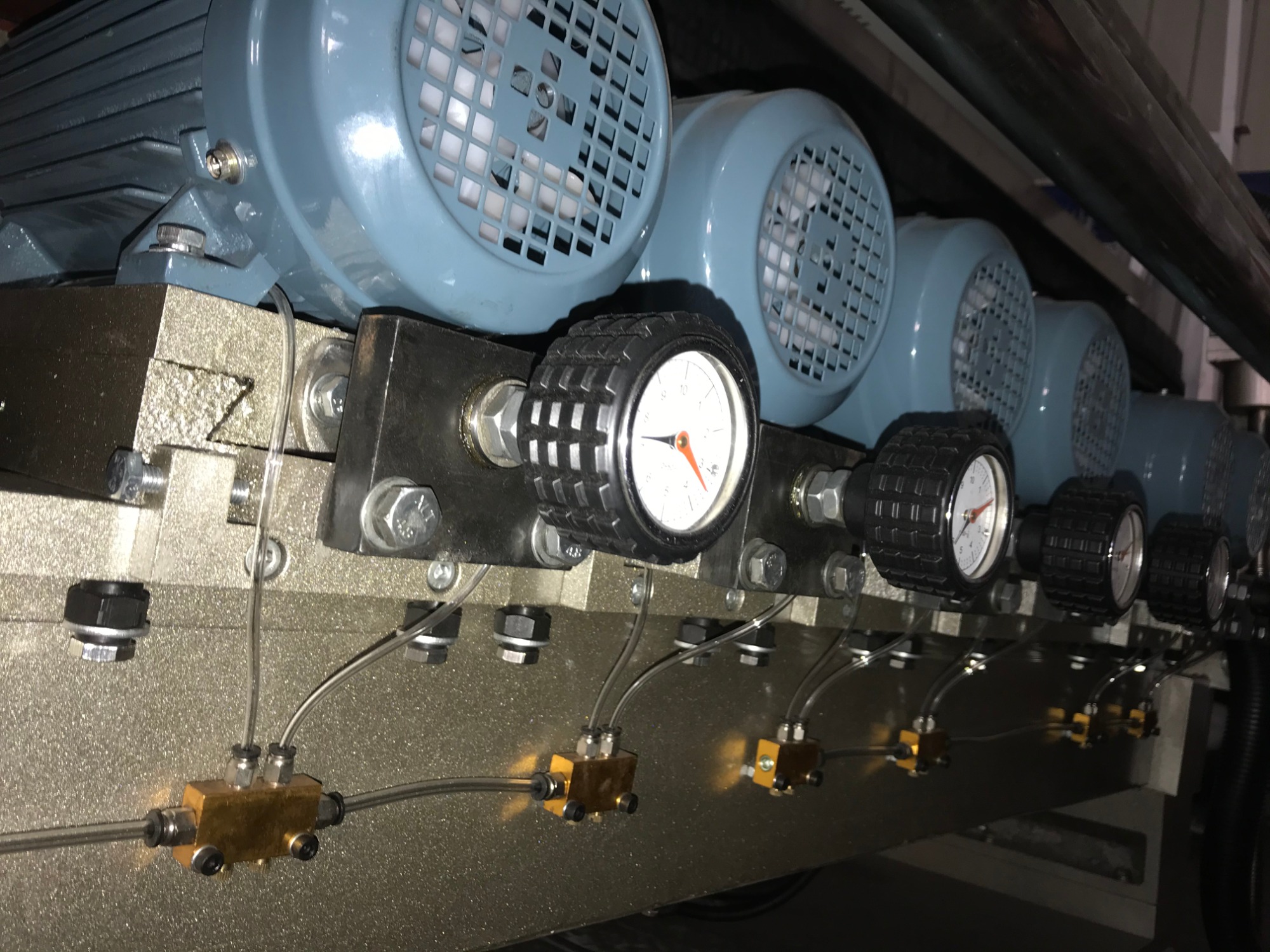

Wheels placement:
  Grinding head

                      name      data		 Grinding head 1#
rough grinding		 Grinding head 2#
rough grinding		 Grinding head 3#
rough grinding		 Grinding head 4#
fine grinding		 Grinding head 5#
fine grinding		 Grinding head 6#
fine grinding		  Grinding head 7#
fine grinding		 Grinding head 8#
polishing		 Grinding head 9#
polishing		 Grinding head 10#
polishing		 Grinding head 11#
polishing
motor Power（KW） 2.2 2.2 2．2 2．2 2．2 2．2 2.2 2．2 1．5 1．5 1.5
  Speed 2800 2800 2800 2800 2800 2800 2800 2800 1400 1400 1400
  Spec（mm） Ф150×22
100 mesh		 Ф150×22
240 mesh		 Ф150×22    180 mesh Ф150×22 Ф150×22    Ф150×22   Ф150×22     Ф150×22   Φ150 Φ150 Ф150
  Name Diamond wheel Diamond wheel Diamond wheel PE Wheel Resin wheel Resin wheel Resin wheel 10S60 Polishing wheel Felt wheel Felt wheel Felt wheel
  From China China China China China China China Import Import Import Import

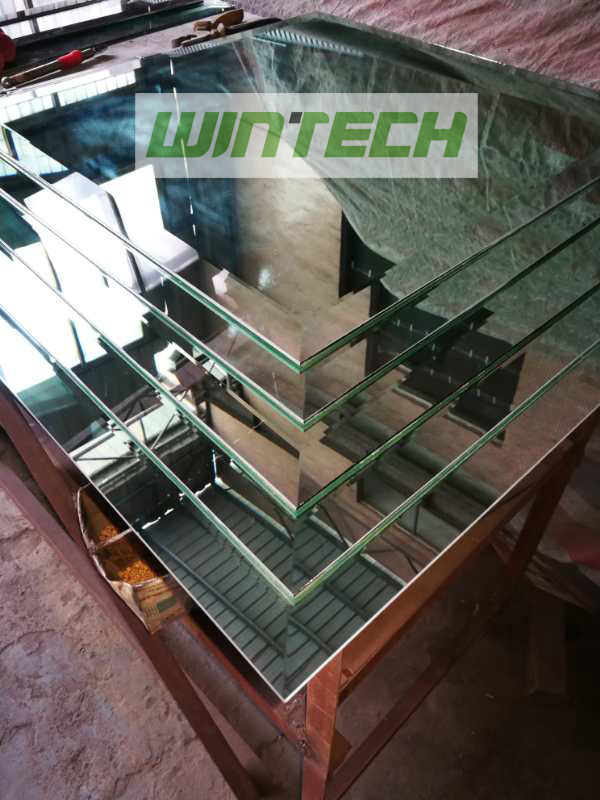

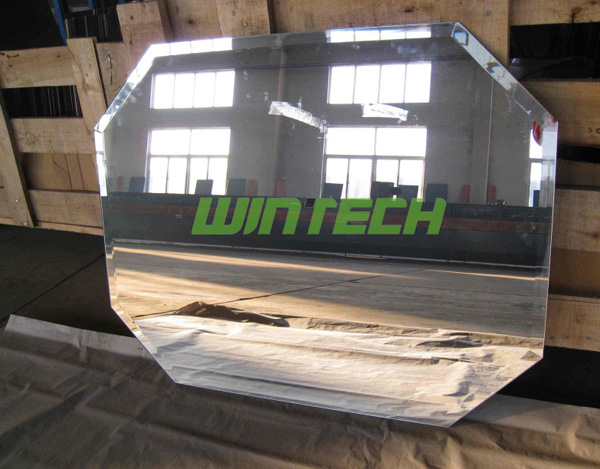

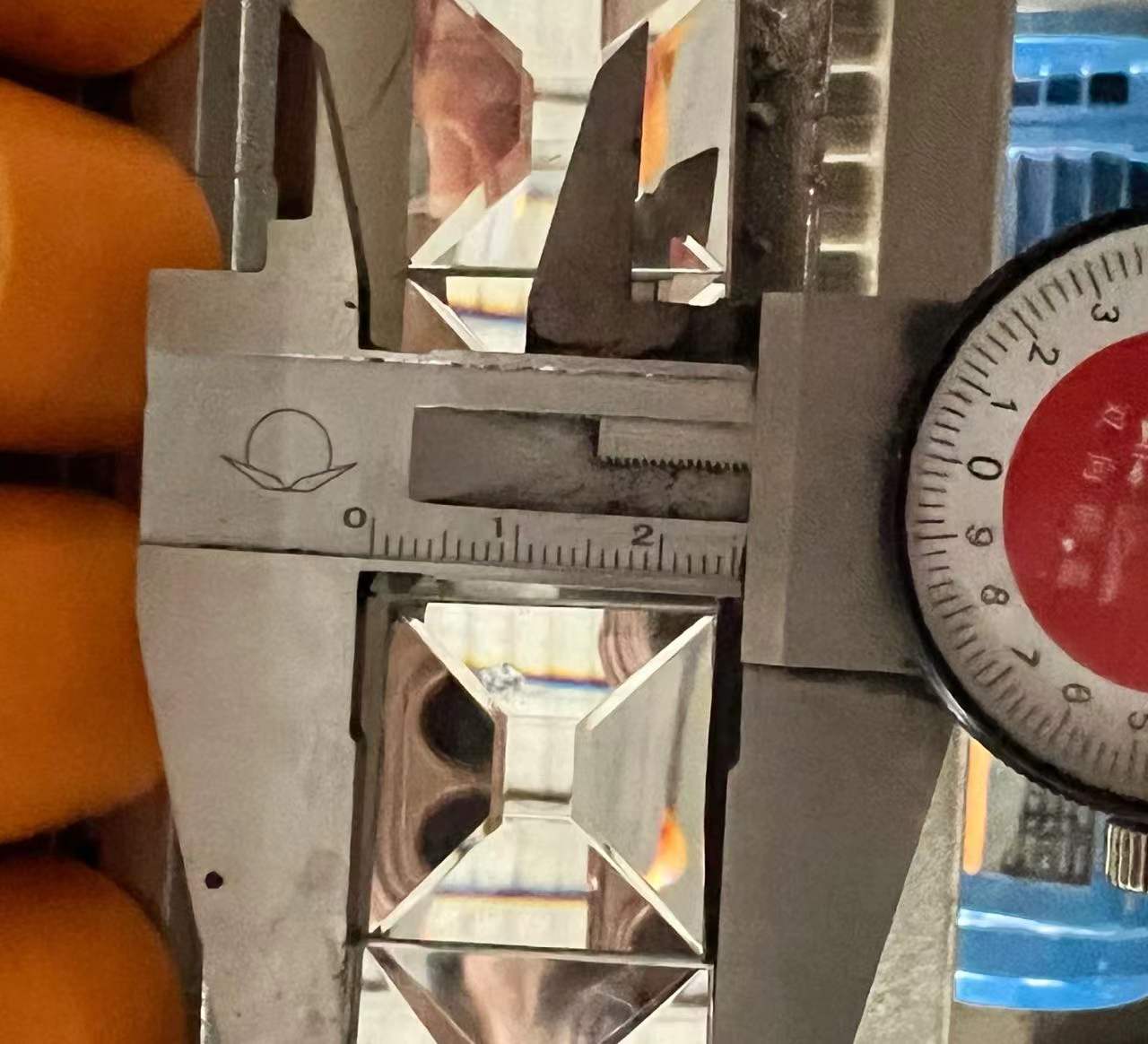

Glass processing samples:

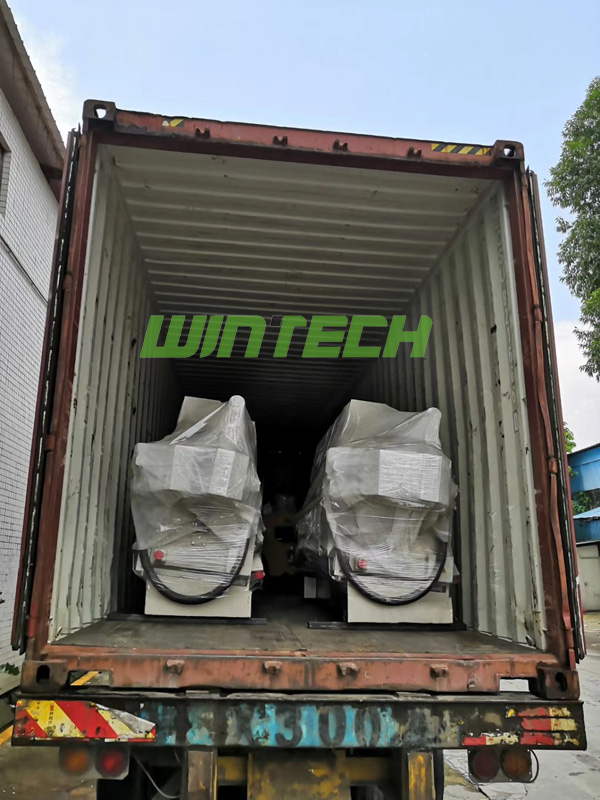

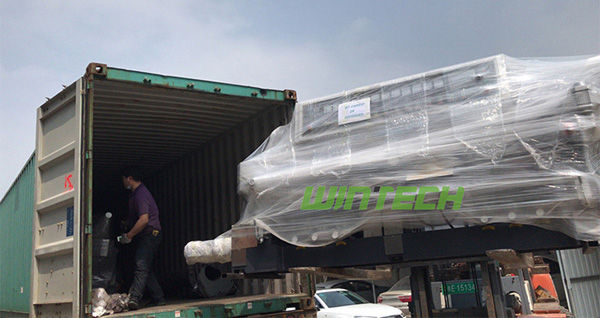

Machines packing and loading pictures:




Workshop:
